适配器及充电器

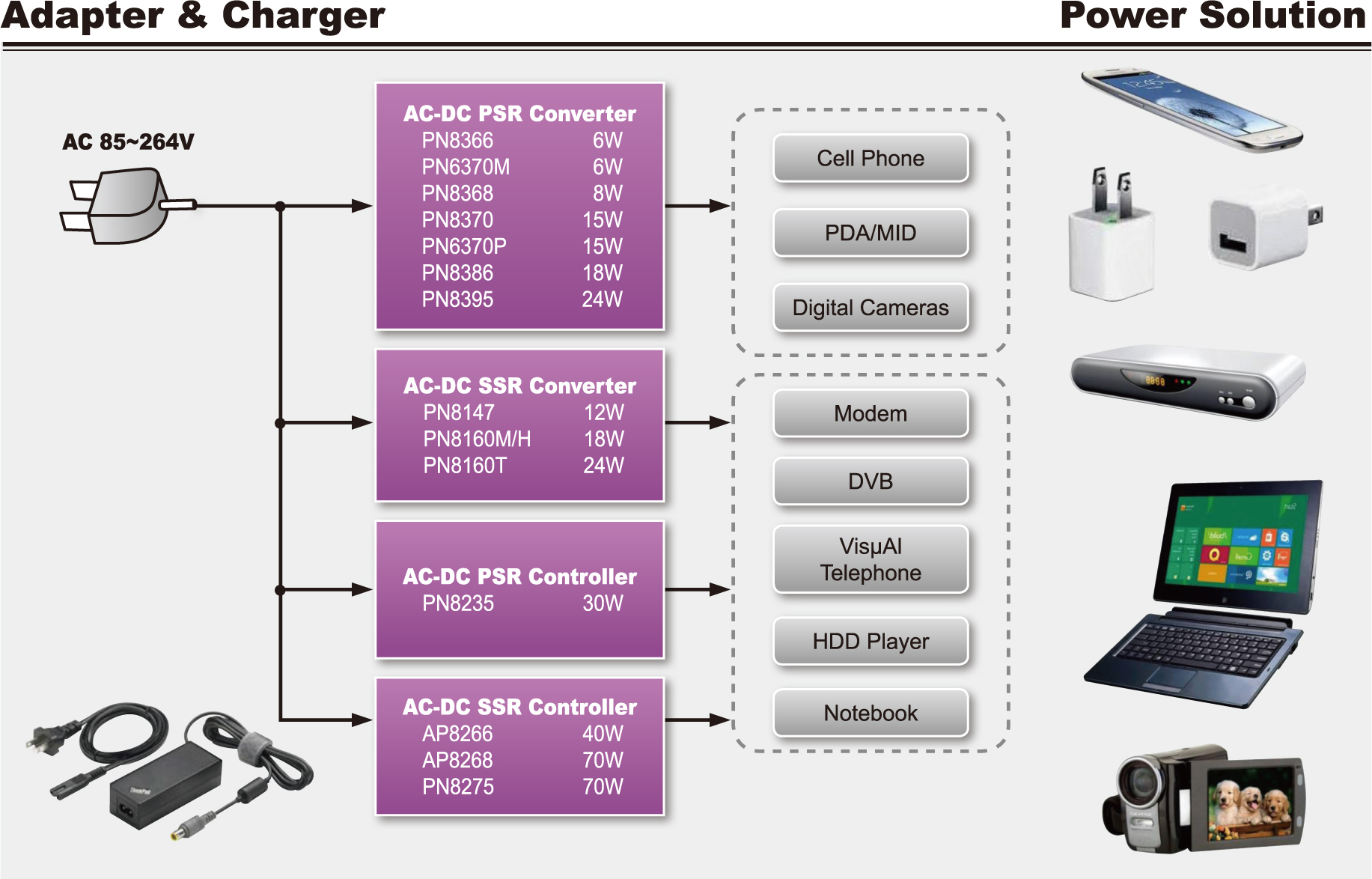

Poweron 在適(shi)配器(qi)和充電器(qi)領域具備比較完整功(gong)率(lv)段的(de)AC/DC電源芯片(pian)產品。我們可以為您提供5-10W內置高壓啟動及功率管的PSR系列、10-18W內置高壓啟動及功率管的Flyback系列、15-90W外置MOS控制器系列等多種架構的產品，并提供高性價比、性能優異、品質穩定的Adapter/Charger系統參考設計方案。

Character	SW Voltage	Standby Power	RDS(on)	VDD Operation Voltage	Output Power	CC/CV precision	Package	Note
CC/CV PSR Converter	0~650V	<30mW	18Ω	9~30V	6W	±3%	SOP7	Charger/Adaptor
CC/CV PSR Converter	0~650V	<30mW	4.5Ω	9~30V	8W	±3%	SOP7	Charger/Adaptor
CC/CV PSR Converter	0~650V	<30mW	2.5Ω	9~30V	18W	±3%	DIP8/SOP7	Charger/Adaptor
CC/CV PSR Converter	0~650V	<30mW	1.6Ω	9~30V	18W	±3%	DIP8/SOP8	Charger/Adaptor
CC/CV PSR Converter	650V	<50mW	1.6Ω	10~30V	24W	±5%	DIP8/SOP8	Charger/Adapter

Product	Character	Driver	Standby Power	Start-up Current	VDD Operation Voltage	Output Power	CC/CV precision	Package	Note
	CC/CV PSR Controller	MOS	<50mW	1.5mA	10~30V	<36W	±5%	SOP7	HV 850V

Product	Character	SW Voltage	Standby Power	RDS(on)	Adaptor Output Power	Open Frame Output Power	Frequency	Package	VDD Operation Voltage
	Low Standby-Power Off-line PWM converters	650V	<50mW	3.6Ω	12W	18W	60kHz	DIP7	9~24V
	Low Standby-Power Off-line PWM converter	650V	<50mW	1.6Ω	24W	30W	65/85kHz	DIP8/SOP8	10~38V

Character	Standby Power	Start-up Current	VDD Operation Voltage	Vcc_Clamp	Output Power	Frequency	Package	Note
PWM Controller	<100mW	5uA	10~26V	32V	<40W	65kHz	SOT23-6/DIP8	-
?PWM Controller	?<100mW	?2uA	?10~26V	30V	?<70W	?65kHz	?SOT23-6	-
??PWM Controller?	????<50mW ?	1.5mA	?10~40V?	?40V?	?<70W?	?????65kHz	SOP7	HV Start-up

注： AC-DC DC-DC LV Other HV other

如果需要產品的詳細手冊或其他資料，請向我們申請。>>
